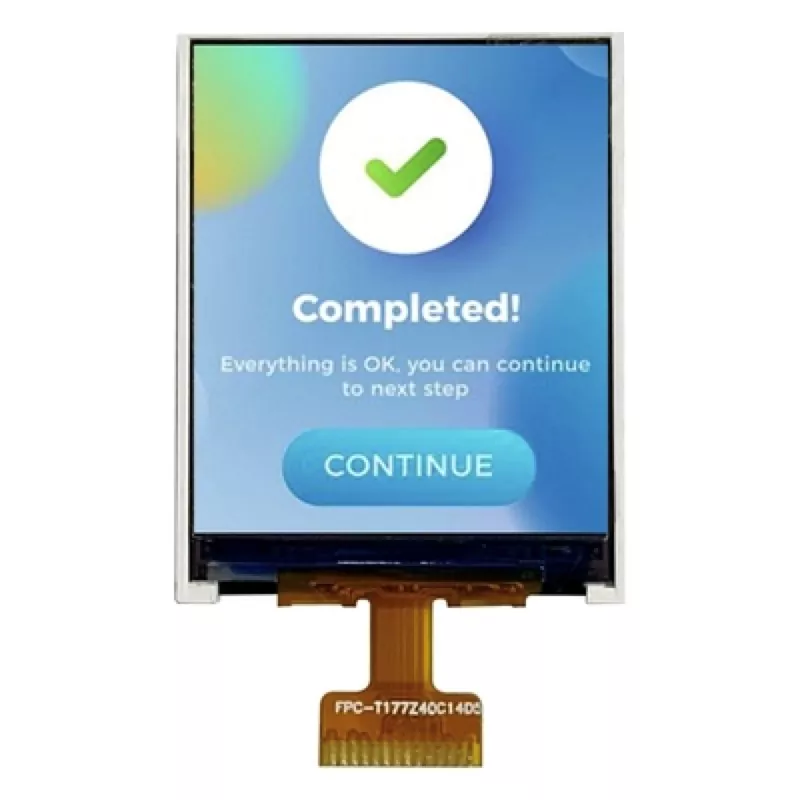

초상화 1.77 인치 TFT LCD 디스플레이 SPI 128x160 ST7735 드라이버

What are the competitive advantages of the Victronix Portrait 1.77 Inch TFT LCD Display SPI 128x160 ST7735 Driver in the competitive situation of TFT Module manufacturers? It features a 128×160 RGB pixel resolution, supporting 262K colors and a 500:1 contrast ratio, and this RoHS-compliant module is a portrait mode with a 6 o'clock viewing direction and a 12 o'clock gray scale inversion direction. Besides, it is validated by extended temperature/humidity testing to ensure perfect operation in extreme temperatures from -20°C to +70°C (-30°C to +80°C storage). In addition, it has a high brightness of 500 cd/m², and its backlight uses 3 LEDs to provide uniform illumination (80% typ. uniformity) and lifetime is up to 30,000 to 50,000 hours, ensuring that it can be used for clarity and hours of use in different lighting situations.

This Victronix 1.77 size TFT Module is suitable for Industrial control panels, portable medical devices, IoT displays, consumer electronics, handheld instruments, and any space-constrained application needing a crisp color display with serial interface simplicity.

General Specifications

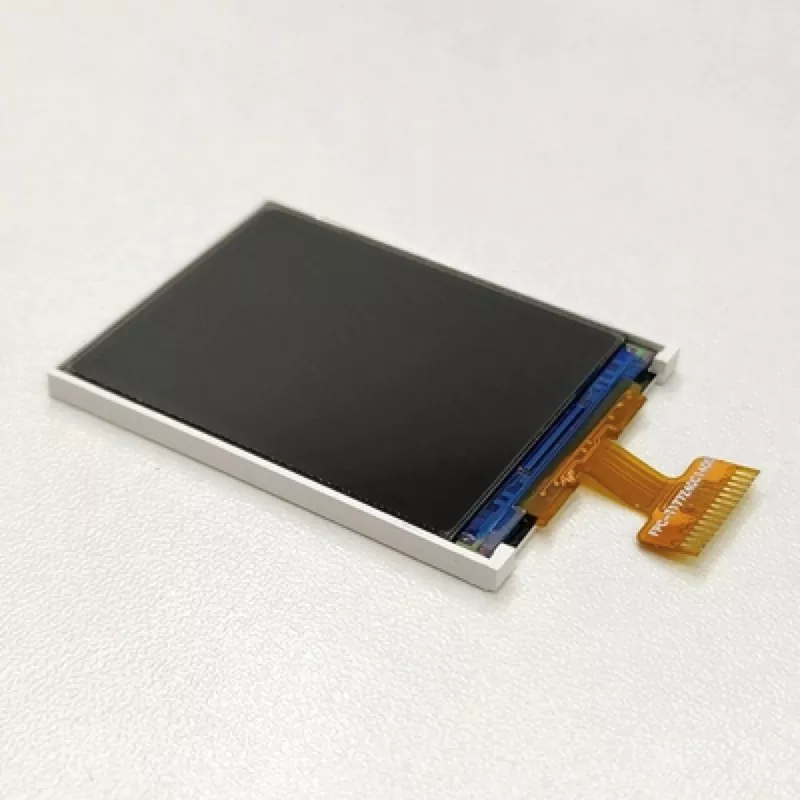

VXT177HSS-13 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 1.77¢¢ display area contains 128 x (RGB) x 160 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion.

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

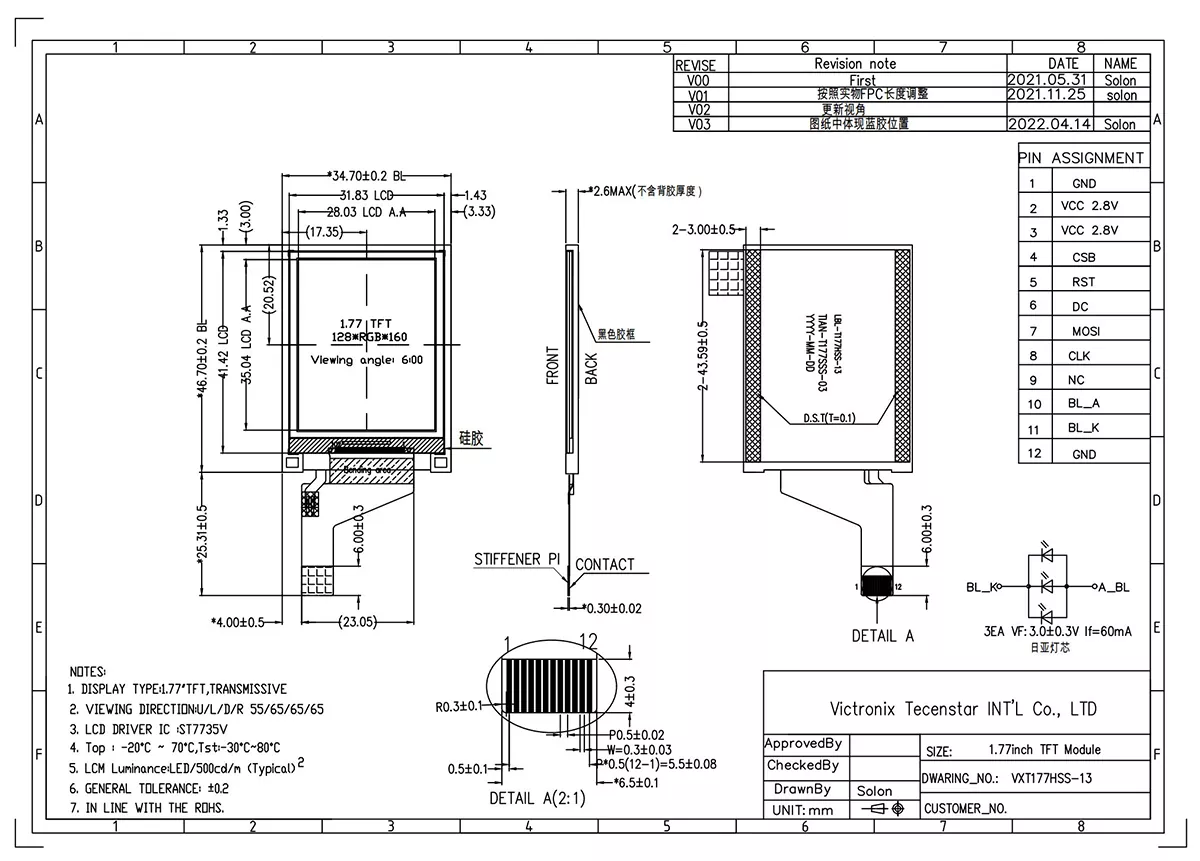

Outline.Drawing
